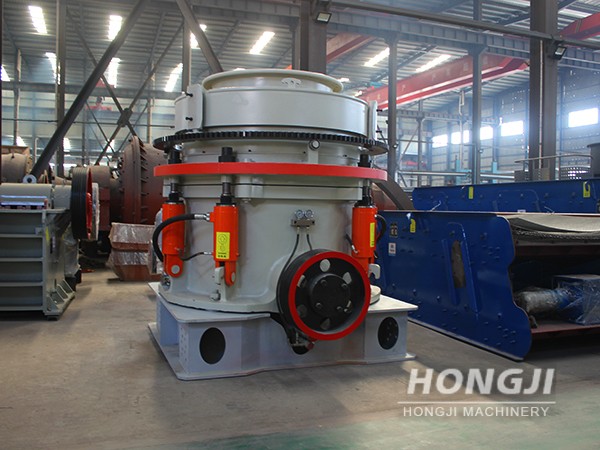

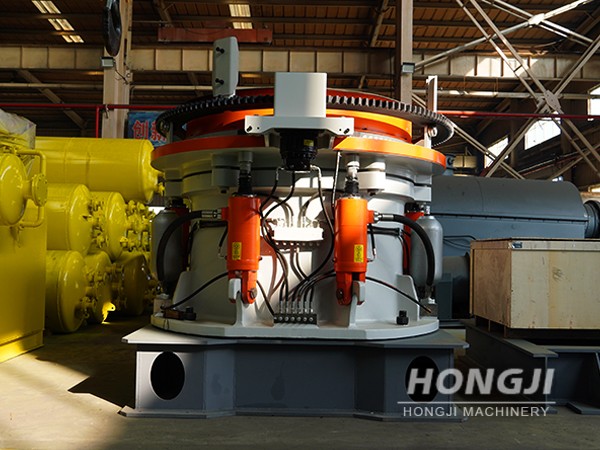

Hydraulic Cone Crusher

Share To:

Product Introduction

The Hydraulic Cone Crusher is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgies and so on. The hydraulic cone crusher can crush materials with middle and high hardness such as ironstone, copper ore, granite, basalt, cobblestone, marble, limestone and so on. The Hydraulic Cone Crusher is widely used in highly automatic crushing line which has strict requirements for the fineness of the end products and crushing ratio.

Applied material

Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Features

  1. The main spare parts like mantle and bowl liner are made of special alloy steel, extending the service life of spare parts by 30%.
  2. The interior of the crusher is protected from dust by a self-lubricating seal ring.
  3. Quiet operation and long life thanks to bevel gears with hardened, spiral-cut teeth.
  4. Product curve and capacity can be optimized by adjusting the eccentric bushing supplied with the crusher.5. High reduction ratio in the secondary crushing stage.
  5. This machine adopts the principle of lamination crushing, the end outputs products are mostly cubic shape, better serve as high quality aggregates.

Technical Parameter

ModelHead diameterFeed openingPower
HP31000 mm (39")220 mm (8 3/4")250 kW (350 hp)
HP41120 mm (44")252 mm (9 7/8")315 kW (400 hp)
HP51250 mm (49")317 mm (12 1/2")370 kW (500 hp)
HP61400 mm (55")331 mm (13")500 kW (650 hp)
HP100735 mm (29")150 mm (6")90 kW (125 hp)
HP200940 mm (37")185 mm (7")132 kW (200 hp)
HP3001120 mm (44")241 mm (9 1/2")220 kW (300 hp)
HP4001320 mm (52")304 mm (12")315 kW (400 hp)
HP5001520 mm (60")351 mm (13 3/4")355 kW (500 hp)
