Product Description

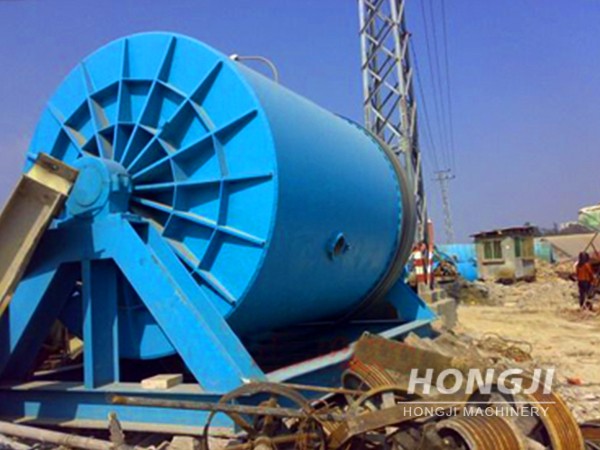

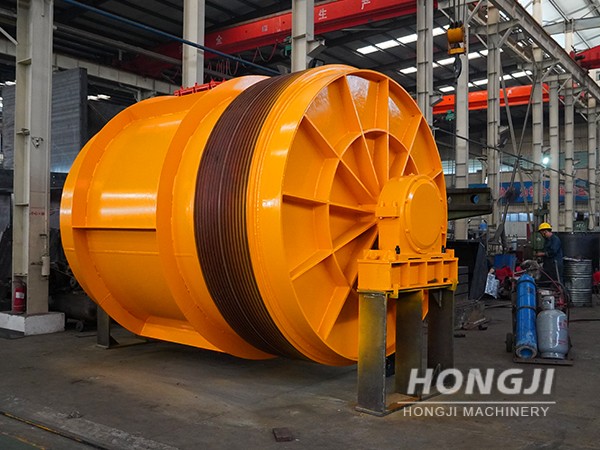

Ceramic ball mill is mainly used for milling of the raw materials. It has two types, wet mills and dry mills. Users can choose the proper model, lining board and media as per the factors, such as: materials specific gravity and hardness, as well as output, etc. It has the advantages of compact structure,high efficiency and small granularity.It can be designed according to user's especial requirements.
Applied materials
Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.
Feturers
- High grinding ratio.
- Large production capacity.
- Easy operation, stable& reliable performance.
- Smaller built-up space in comparison with mills seated on trunnion bearings.
- Wide applicability and Great yield.
- Oil mist lubrication device guarantees the lubrication of all gears.
Technical Parameter
| Model | Size of barrel (mm) | Material weight per mill (Mt) | Effective volume(m³) | Rotation speed (r/min) | Motor power (kw) | Net weight(kg) |
| SSTCQ100 | Ø750Χ900 | 0.1 | 0.4 | 46 | 2.2 | 800 |
| SSTCQ200 | Ø900Χ1050 | 0.2 | 0.67 | 36 | 3 | 1000 |
| SSTCQ300 | Ø950Χ1200 | 0.3 | 0.83 | 35 | 4 | 1300 |
| SSTCQ500 | Ø1220Χ1250 | 0.5 | 1.43 | 30 | 5.5 | 1500 |
| SSTCQ1000 | Ø1600Χ1700 | 1.0 | 3.4 | 26 | 11 | 2200 |
| SSTCQ1500 | Ø1800Χ2100 | 1.5 | 5.3 | 23 | 15 | 3000 |
| SSTCQ2000 | Ø1900Χ2100 | 2.0 | 6 | 22 | 18.5 | 3500 |
| SSTCQ3000 | Ø2080Χ2600 | 3.0 | 8.8 | 24 | 30 | 4200 |
