Product Introduction

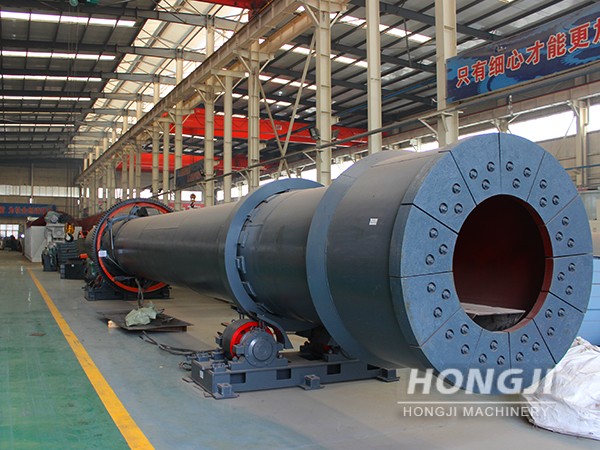

The cement rotary kiln is the core equipment in the cement production line and is mainly used for calcining cement clinker. It is a key equipment for processing limestone, clay, iron ore and other raw materials through high temperature to generate cement clinker. Cement rotary kiln has the characteristics of high efficiency, energy saving and environmental protection, and is widely used in cement manufacturing industry.
Applied Materials
It is widely used in cement, silicate products, new building materials, refractory materials, glass ceramics and other production industries.

Features
- Cement rotary kiln can be used in 300-5000 t/d cement plant;
- Advanced technology, easy maintenance;
- Environmental protection, applied in different industries;
- Hongji provides a full set of cement equipment parts, we also provides a variety of cement rotary kiln spare parts.

Technical Parameter
Product Specification (m) | Diameter (m) | Length (m) | Capacity (t/d) | Rotation speed (r/min) | Motor power (kw) | Total weight (t) |
Φ2.5×40 | 2.5 | 40 | 180 | 0.44-2.44 | 55 | 149.61 |
Φ2.5×50 | 2.5 | 50 | 200 | 0.62-1.86 | 55 | 187.37 |
Φ2.5×54 | 2.5 | 54 | 280 | 0.48-1.45 | 55 | 196.29 |
Φ2.7×42 | 2.7 | 42 | 320 | 0.10-1.52 | 55 | 198.5 |
Φ2.8×44 | 2.8 | 44 | 450 | 0.437-2.18 | 55 | 201.58 |
Φ3.0×45 | 3 | 45 | 500 | 0.5-2.47 | 75 | 210.94 |
Φ3.0×48 | 3 | 48 | 700 | 0.6-3.48 | 100 | 237 |
Φ3.0×60 | 3 | 60 | 800 | 0.3-2 | 100 | 310 |
Φ3.2×50 | 3.5 | 50 | 1000 | 0.6-3 | 125 | 278 |
Φ3.3×52 | 3.3 | 52 | 1300 | 0.266-2.66 | 125 | 283 |
Φ3.5×54 | 3.5 | 54 | 1500 | 0.55-3.4 | 220 | 363 |
Φ3.6×70 | 3.6 | 70 | 1800 | 0.25-1.25 | 125 | 419 |
Φ4.0×56 | 4 | 56 | 2300 | 0.41-4.07 | 315 | 456 |
Φ4.0×60 | 4 | 60 | 2500 | 0.396-3.96 | 315 | 510 |
Φ4.2×60 | 4.2 | 60 | 2750 | 0.41-4.07 | 375 | 633 |
Φ4.3×60 | 4.3 | 60 | 3200 | 0.396-3.96 | 375 | 583 |
Φ4.5×66 | 4.5 | 66 | 4000 | 0.41-4.1 | 560 | 710.4 |
Φ4.7×74 | 4.7 | 74 | 4500 | 0.35-4 | 630 | 849 |
Φ4.8×74 | 4.8 | 74 | 5000 | 0.396-3.96 | 630 | 899 |
Φ5.0×74 | 5 | 74 | 6000 | 0.35-4 | 710 | 944 |
Φ5.6×87 | 5.6 | 87 | 8000 | Max4.23 | 800 | 1265 |
Φ6.0×95 | 6 | 95 | 10000 | Max5 | 950×2 | 1659 |
