Vertical Lime Kiln

Share To:

Product Introduction

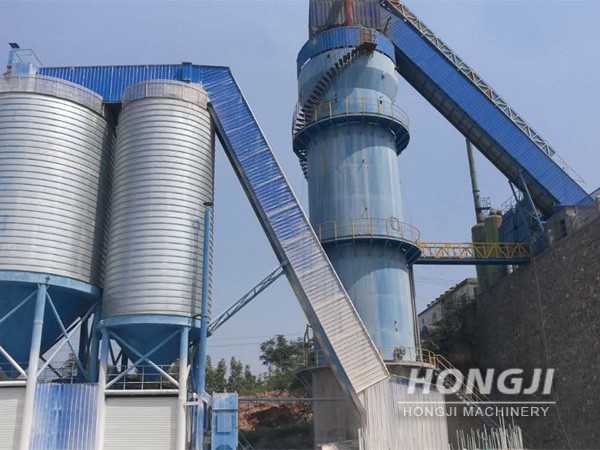

Limestone and coal are respectively fed into the storage bins by forklift. The lower parts of the bins have automatic weighing hoppers. After weighing according to the amount set by the computer, the limestone and coal are mixed. The mixed material is lifted by the skip car through the inclined bridge to the top of the lime kiln, and then is evenly sprinkled into the kiln through the loading equipment and the feeding equipment.

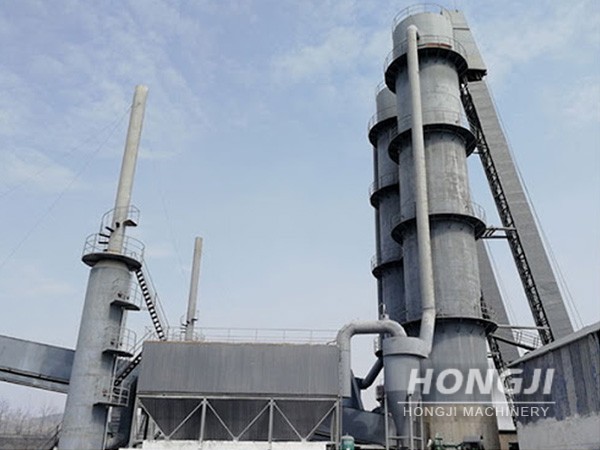

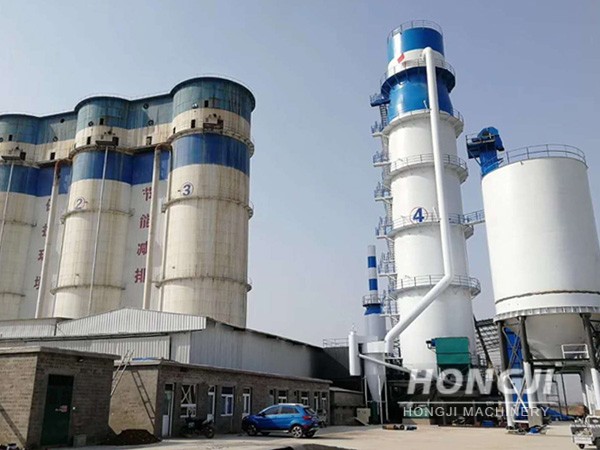

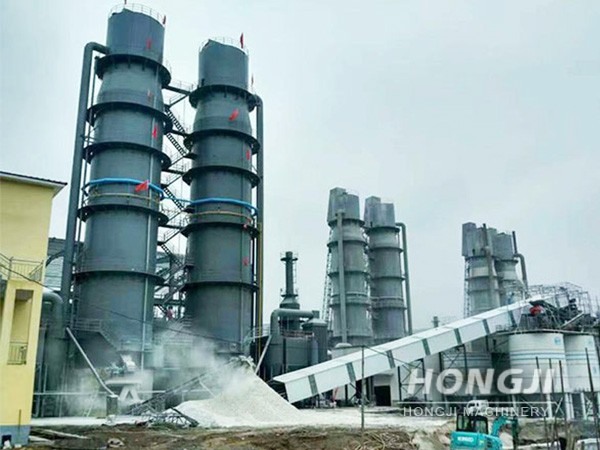

Vertical Lime Kiln

Features

  •  Automatic and manual system are both equipped. Except for the manual operation of the on-site operation box, all of them can be controlled by computer operation in the central control room;
  • The data of all instruments (such as pressure gauge, flow meter, temperature instrument) is displayed on the computer and can be printed by the printer;
  • Perfect WINCC human-machine interface operating system;
  • Complete Siemens intelligent weighing module batching, weighing and compensation system.

Technical Parameter

Capacity
(t/d)
Effective Volume
(m3)
Effective Height
(m)
Effective Section
Dia.
(m)
Limestone Size(mm)Heat Consumption
(kJ/kg)
CaO
(%)
Activity
(mL)
1009820Ø2.530~60/40~80<4600>90>300
12014120Ø3.030~60/40~80<4600>90>300
15020221Ø3.530~60/40~80<4500>90>300
20030124Ø4.030~60/40~80<4500>90>300
30039725Ø4.530~60/40~80<4400>90>300
40049125Ø5.030~60/40~80<4200>90>300
50073526Ø6.030~60/40~80<4200>90>300
Remarks: All above data are for reference only.
