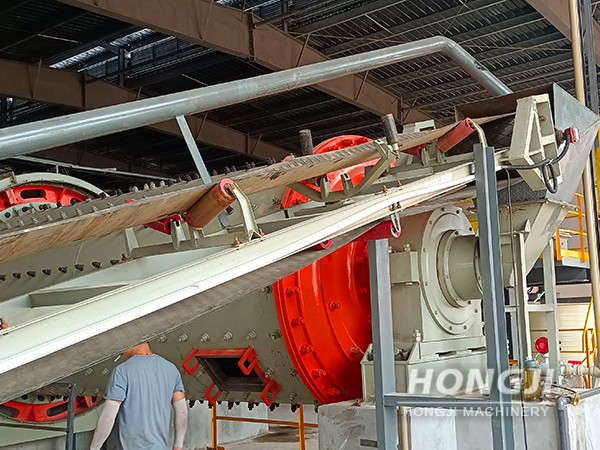

Belt Conveyor

Share To:

Product Introduction

Belt conveyor has the character of strong transport capacity, The conveyor belt can be used for horizontal or inclined transport, long transport distance, simple and easy to maintain, easy to implement automated operation. According to the requirements of the conveyor process, it can be a single conveyor, also several components or combined with other transport equipment to form a horizontal or inclined transport system to fit the different layout of the production line. It is widely used in metallurgy, cement, coal, chemicals, building materials, food, ports, and other fields.

Applied materials

Mining Iron, Beneficiation Of Magnetite, Pyrrhotite, Hematite, Limonite, Siderite, Etc.

Feturers

  • Stable running, low noise, and long service life.
  • Thread rod type take-up (tensioner) can be fitted at the tail to meet various conveying requirements.
  • Flexible for multi-point feeding and discharging.
  • Equipped with an alarming device for material blockage.
  • Devices for speed loss and chain breakage protection are optional.

Technical Parameter

ModelConveyor BeltDelivery Length
(mm)
Electric Drum Diameter
(mm)
Capacity
(t/h)
Power
(kw)
Width
(mm)
Speed
(m/s)
inclination
(°)
TB-5005000.8~2.50~2020~240500、63040~2301.5~30
TB-6506500.8~2.50~2020~240500、63067~3911.5~45
TB-8008000.8~3.150~2020~240500、630118~8242.2~75
TB-100010001~3.150~2020~240500、630、800230~12334~110
TB-120012001~3.150~2020~240500、630、800300~16005.5~130
TB-140014001~3.150~2020~240630、800、1000400~20007.5~160
TB-160016001~3.150~2020~240630、800、1000500~230011~220
