Product Introduction

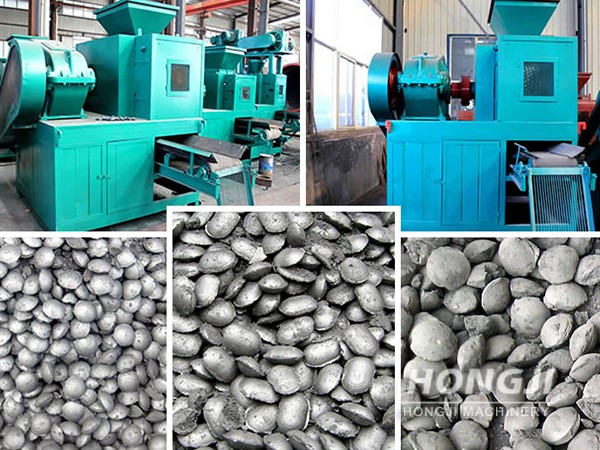

The briquette machine is a device that presses powdery materials into balls. It is easy to burn, smelt, store and transport materials in a spherical shape.
To meet the diverse needs of customers, We provides you with various types of affordable and suitable briquette machines.
We can process various materials
- Charcoal powder: coconut shells, rick husks, bamboo shavings, corn stalks, cotton straws, and other agricultural wastes. Note that we don't process Shisha Charcoal (hookah coals).

- Coal: coal slurry, coal dust, coal fines, coal powder, fly ash etc.

- Metal ore powder: iron powder, sponge iron powder, manganese ore fines, aluminum powder, silicon powder, ore tailings, etc.

Features

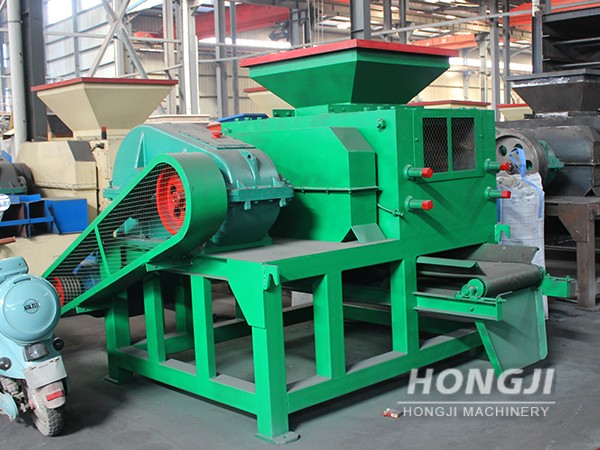

The type coal pressure ball machine equipment mainly consists of three parts: the feeding part, the transmission part, the molding parts.
1. Feeding part: it is mainly to make sure materials enter into the rollers uniformly by realizing rationing feeding materials to the main machine.
2. The transmission part: the main driven system is electric motor--triangle strip--speed reducer--open gear--roller.
3. The molding parts: it mainly refer to the host part, and the core part is roller.
Technical Parameter
Model | Roll diamter (mm) | Roll width (mm) | Total pressure (t) | Main motor power (kw) | Output (t) | Weight (t) |
GY520-150 | 520 | 196 | 150 | 55 | 2.2-3.5 | 13 |
GY650-220 | 650 | 200 | 220 | 110 | 4-6.5 | 19.2 |
GY750-300 | 750 | 280 | 300 | 185 | 6-8.5 | 34 |
GY1000-350 | 1000 | 440 | 350 | 250 | 10-15 | 50.8 |
GY1000-450 | 1000 | 504 | 450 | 280 | 14-17 | 58.5 |
GY1000-500 | 1000 | 504 | 500 | 315 | 15-20 | 58.5 |
GYS1000-500 | 1000 | 600 | 500 | 280 | 17-21 | 56.5 |
GY1000-540 | 1000 | 900 | 540 | 185Kw×2 | 30-35 | 60 |
GY1200-800 | 1200 | 900 | 800 | 280Kw×2 | 40 | 110 |
GY1400-1000 | 1400 | 1000 | 1000 | 400Kw×2 | 50 | 156 |
